Android自定义圆形进度条

Android admin 2508℃ 0评论

控件继承自view,onMeasure来初始化几个内部画布的宽和高,在onDraw里面根据progress进行绘图。外部通过setProgress()设置进度
setLevel()决定遮罩层颜色
setProgressColor()设置进度条颜色
setText()设置文字内容;

代码中关键部分都有添加注释。。。。

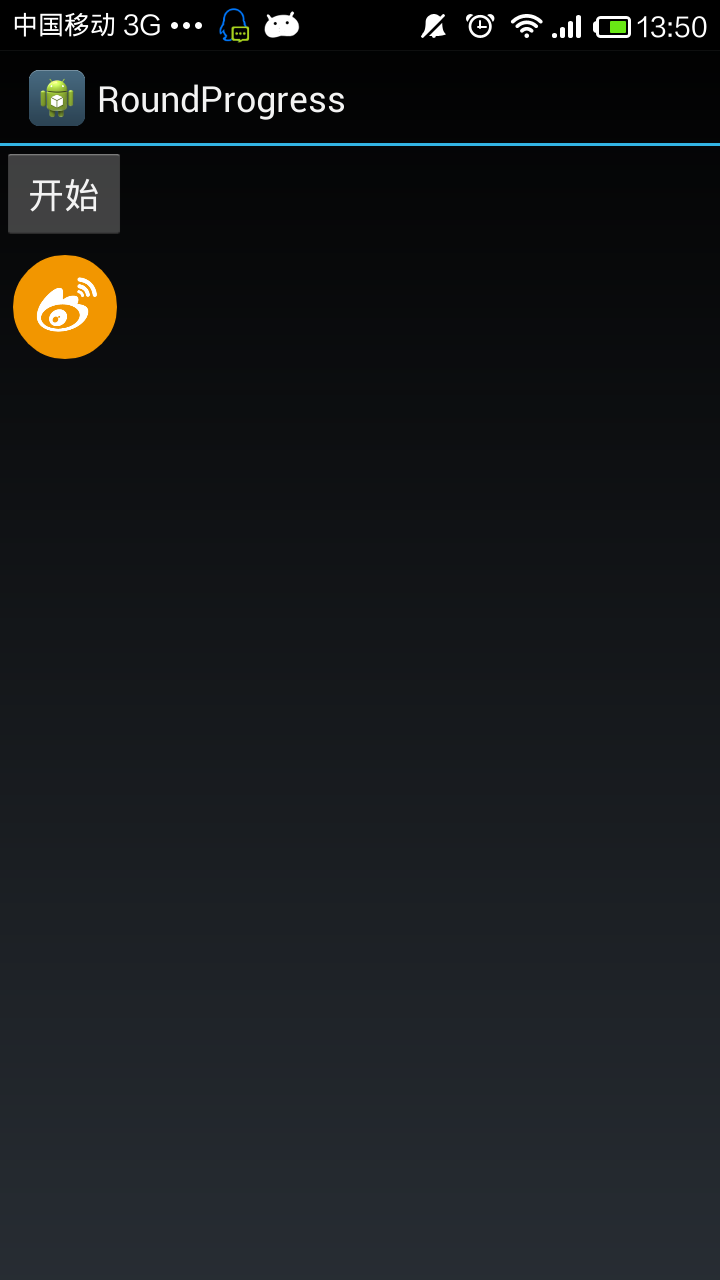

截图:

代码:


package com.znn.roundprogress;

import android.R.integer;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Paint.FontMetrics;
import android.graphics.PaintFlagsDrawFilter;
import android.graphics.PorterDuff.Mode;
import android.graphics.PorterDuffXfermode;
import android.graphics.Rect;
import android.graphics.RectF;
import android.graphics.Xfermode;
import android.util.AttributeSet;
import android.view.View;

/**
* 带图片的圆环样式的进度环
*
* @author Randy.Zhang
*
*/
public class ProgressImageView extends View {

private static final float IMAGE_PADDING_SCALE = 0.1f;

public static int LEVEL_COLOR_INDEX_RED = 0;
public static int LEVEL_COLOR_INDEX_BLUE = 1;
public static int LEVEL_COLOR_INDEX_BROWN = 2;
public static int LEVEL_COLOR_INDEX_GREEN = 3;
public static int LEVEL_COLOR_INDEX_NONE = -1;

private static final int[] LEVEL_COLOR_ARRAY = { 0X84F84646, 0X843C86E4,
0X84EC9041, 0X8448AF21};//红色 蓝色 棕色 绿色

private int progress = 0, progressColor = 0XFF00FF00; //进度的颜色

private int level = -1;
private int[] levelColorArray = LEVEL_COLOR_ARRAY;

private boolean levelCoverImage = true;

private String text;

private float descent;
private float textHeight;
private int textColor = 0XFFFFFFFF;
private float textSize = 22;

private Context context;

private Bitmap imageRes;

private RectF drawProgressRect;
private RectF drawImageRect;
private Rect imageRect;

private Xfermode clipMode;

private PaintFlagsDrawFilter paintFilter;

private Paint paint;

public ProgressImageView(Context context) {
super(context);
// TODO Auto-generated constructor stub
init(context);
}

public ProgressImageView(Context context, AttributeSet attrs) {
super(context, attrs);
// TODO Auto-generated constructor stub
init(context);
}

public ProgressImageView(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
// TODO Auto-generated constructor stub
init(context);
}

private void init(Context context) {
this.context = context;

drawProgressRect = new RectF();//进度的圆环的外切正方形
drawImageRect = new RectF();
imageRect = new Rect();

clipMode = new PorterDuffXfermode(Mode.SRC_IN);//交集并第一个图模式

paintFilter = new PaintFlagsDrawFilter(0, Paint.ANTI_ALIAS_FLAG//抗锯齿
| Paint.FILTER_BITMAP_FLAG);//线性取样

paint = new Paint();
paint.setAntiAlias(true);
paint.setDither(true);
paint.setColor(0XFFFFFFFF);
paint.setFakeBoldText(true);
}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
// TODO Auto-generated method stub
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int width = getMeasuredWidth();
int height = getMeasuredHeight();

int smallWidth = 0, drawImageRectWidth = 0;
if (width > height) {//View中最大的一个正方形的区域
smallWidth = height;
drawProgressRect.left = (width - height) / 2;
drawProgressRect.top = 0;
drawProgressRect.right = drawProgressRect.left + height;
drawProgressRect.bottom = drawProgressRect.top + height;
} else {
smallWidth = width;
drawProgressRect.left = 0;
drawProgressRect.top = (height - width) / 2;
drawProgressRect.right = drawProgressRect.left + width;
drawProgressRect.bottom = drawProgressRect.top + width;
}
//将内部的图片和外部的圆环之间留一点空隙
drawImageRectWidth = (int) ((float) smallWidth * (1 - IMAGE_PADDING_SCALE * 2));
//也是一个正方形的区域
drawImageRect.left = (width - drawImageRectWidth) / 2;
drawImageRect.top = (height - drawImageRectWidth) / 2;
drawImageRect.right = drawImageRect.left + drawImageRectWidth;
drawImageRect.bottom = drawImageRect.top + drawImageRectWidth;

//文字配置初始化
textSize = width / 5;
paint.setTextSize(textSize);
FontMetrics fm = paint.getFontMetrics();
descent = fm.descent;
textHeight = (int) Math.floor(fm.descent - fm.ascent);
}

@Override
protected void onDraw(Canvas canvas) {
// TODO Auto-generated method stub
super.onDraw(canvas);

canvas.setDrawFilter(paintFilter);

//画圆饼
if (progress > 0 && progress < 101) { paint.setColor(progressColor); int sweepAngle = (int) ((float) progress / 100 * 360); canvas.drawArc(drawProgressRect, 270, sweepAngle, true, paint); } if (!levelCoverImage) {//先画遮盖层,也就是在图片下面 if (level > -1 && level <= levelColorArray.length) { paint.setColor(levelColorArray[level]); canvas.drawCircle(drawImageRect.left + drawImageRect.width() / 2, drawImageRect.top + drawImageRect.height() / 2, drawImageRect.width() / 2, paint); } } if (imageRes != null) {//中间的图片 int layerNumber = canvas.saveLayer(drawImageRect.left, drawImageRect.top, drawImageRect.left + drawImageRect.width(), drawImageRect.top + drawImageRect.height(), null, Canvas.MATRIX_SAVE_FLAG | Canvas.CLIP_SAVE_FLAG | Canvas.HAS_ALPHA_LAYER_SAVE_FLAG | Canvas.FULL_COLOR_LAYER_SAVE_FLAG | Canvas.CLIP_TO_LAYER_SAVE_FLAG); paint.setColor(0XFF00FF00); canvas.drawCircle(drawImageRect.left + drawImageRect.width() / 2, drawImageRect.top + drawImageRect.height() / 2, drawImageRect.width() / 2, paint); paint.setXfermode(clipMode);//设置叠加方式 这里是取交集 留下src canvas.drawBitmap(imageRes, imageRect, drawImageRect, paint); paint.setXfermode(null); canvas.restoreToCount(layerNumber); } if (levelCoverImage) {//后画遮盖层,也就是在图片上面 if (level > -1 && level <= levelColorArray.length) {
paint.setColor(levelColorArray[level]);
canvas.drawCircle(drawImageRect.left + drawImageRect.width()
/ 2, drawImageRect.top + drawImageRect.height() / 2,
drawImageRect.width() / 2, paint);
}
}

if (text != null) {//添加文字
paint.setColor(textColor);
float textTop = 0;
float textLeft = 0;
textTop = drawImageRect.bottom
- (drawImageRect.height() - textHeight) / 2 - descent;
textLeft = drawImageRect.left
+ (drawImageRect.width() - paint.measureText(text)) / 2;
canvas.drawText(text, textLeft, textTop, paint);
}
}

/**
* 设置进度
* @param progress
*/
public void setProgress(int progress) {
this.progress = progress;
this.invalidate();
}

/**
* level遮盖层的颜色 -1为无
* @param level
*/
public void setLevel(int level) {
this.level = level;
this.invalidate();
}

/**
* 设置文字
* @param text
*/
public void setText(String text) {
this.text = text;
this.invalidate();
}

/**
* 设置后面的图片
* @param imageResId 图片的资源ID
*/
public void setImageRes(int imageResId) {
try {
imageRes = BitmapFactory.decodeResource(context.getResources(),
imageResId);
imageRect = new Rect(0, 0, imageRes.getWidth(),
imageRes.getHeight());
this.invalidate();
} catch (Exception e) {
e.printStackTrace();
}
}

public int getProgressColor() {
return progressColor;
}

/**
* 设置进度环的颜色
* @param progressColor
*/
public void setProgressColor(int progressColor) {
this.progressColor = progressColor;
this.invalidate();
}

public int[] getLevelColorArray() {
return levelColorArray;
}

public void setLevelColorArray(int[] levelColorArray) {
this.levelColorArray = levelColorArray;
this.invalidate();
}

public int getTextColor() {
return textColor;
}

/**
* 设置文字颜色
* @param textColor
*/
public void setTextColor(int textColor) {
this.textColor = textColor;
this.invalidate();
}

public float getTextSize() {
return textSize;
}

/**
* 设置文字大小
* @param textSize
*/
public void setTextSize(float textSize) {
this.textSize = textSize;
paint.setTextSize(textSize);
FontMetrics fm = paint.getFontMetrics();
descent = fm.descent;
textHeight = (int) Math.floor(fm.descent - fm.ascent);
this.invalidate();
}

public Paint getPaint() {
return paint;
}

public void setPaint(Paint paint) {
if (paint != null) {
this.paint = paint;
this.invalidate();
}
}

public int getProgress() {
return progress;
}

public int getLevel() {
return level;
}

public String getText() {
return text;
}

/**
* 设置后面的图片
* @param imageRes
*/
public void setimageRes(Bitmap imageRes) {
try {
this.imageRes = imageRes;
imageRect = new Rect(0, 0, imageRes.getWidth(),
imageRes.getHeight());
this.invalidate();
} catch (Exception e) {
e.printStackTrace();
}
}

public boolean isLevelCoverImage() {
return levelCoverImage;
}

/**
* 设置遮罩层是否遮住图片也就是是否在图片上面
* @param levelCoverImage
*/
public void setLevelCoverImage(boolean levelCoverImage) {
this.levelCoverImage = levelCoverImage;
}

}

布局引用:

源代码:

https://github.com/qduningning/RoundProgress

[onebox url="https://github.com/qduningning/RoundProgress"]
